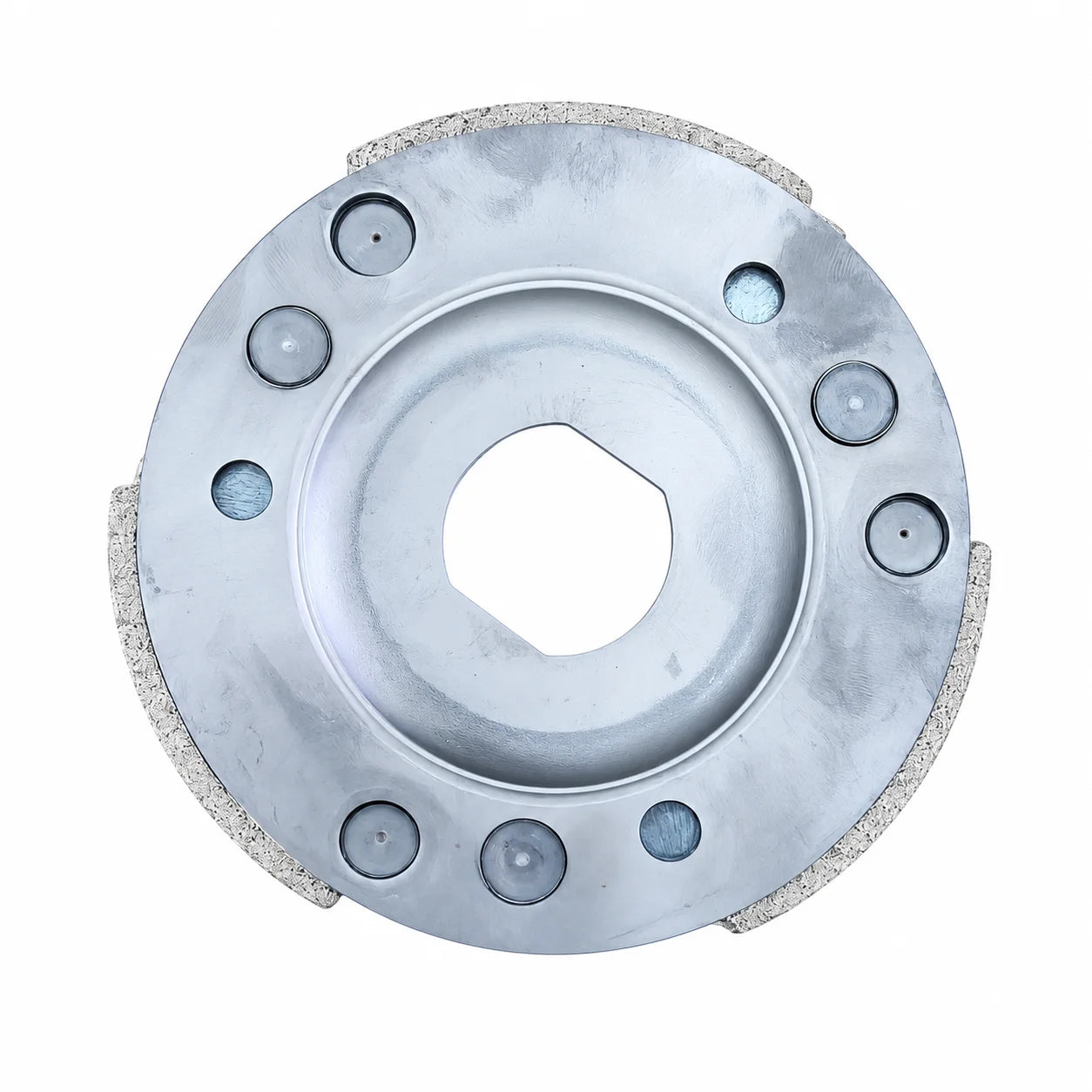

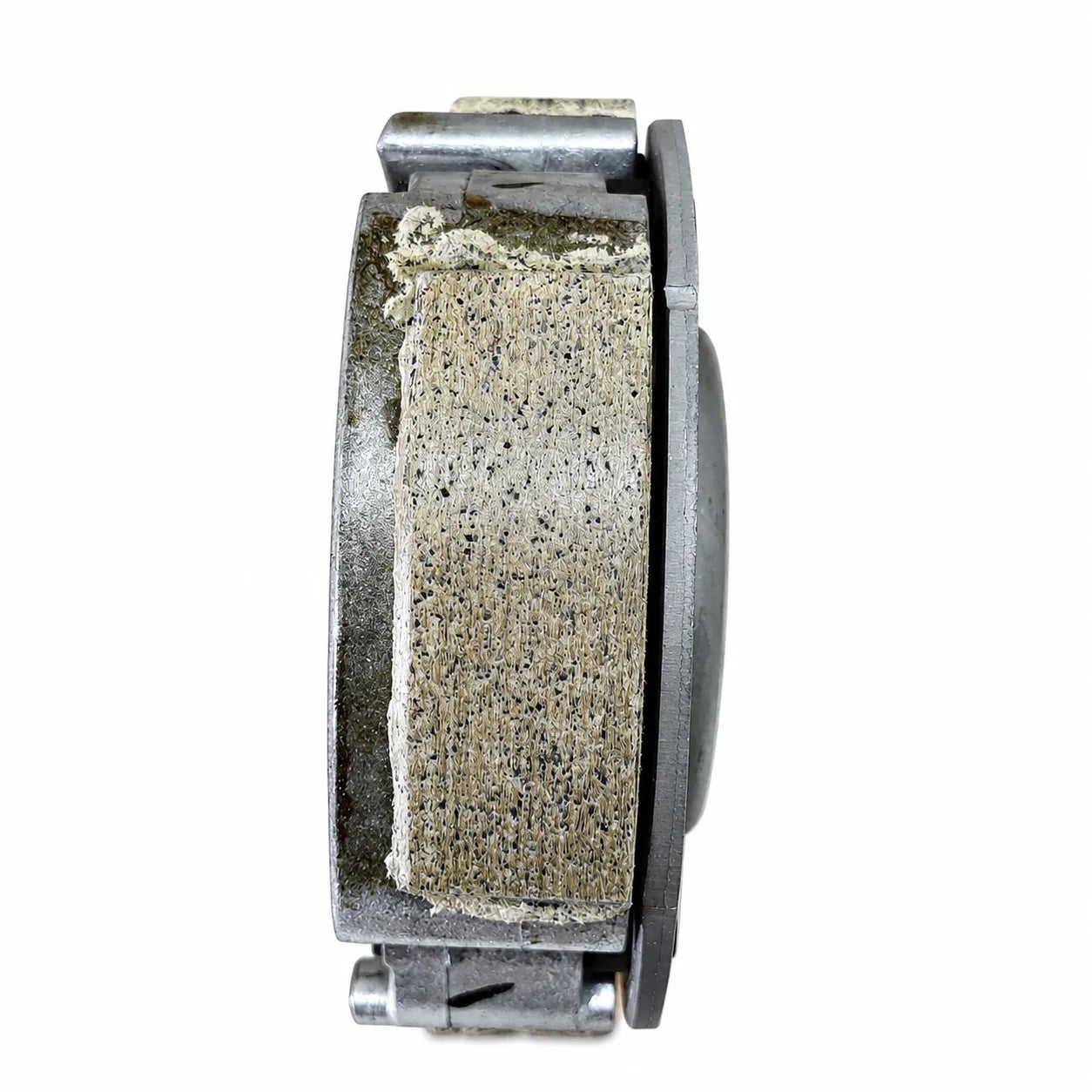

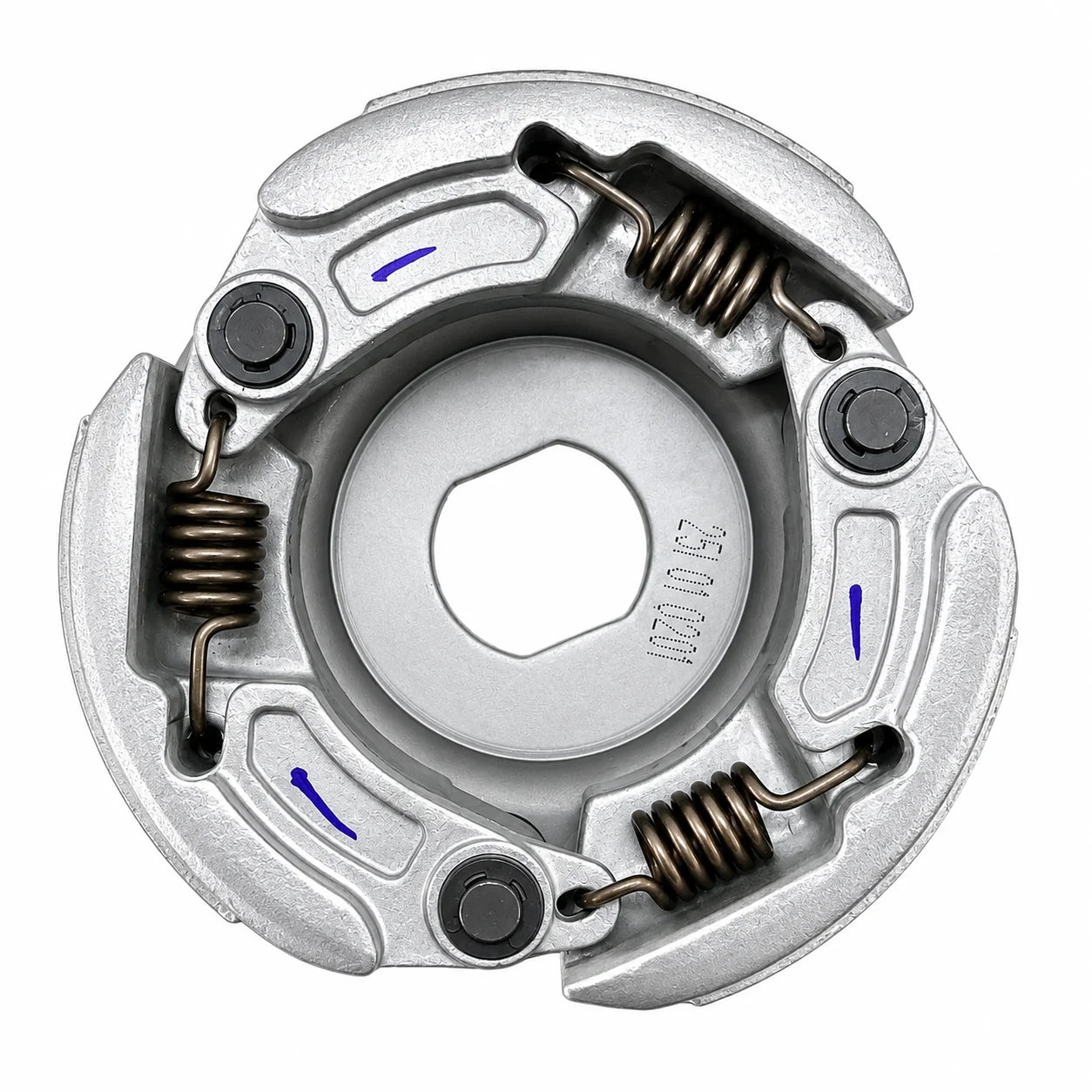

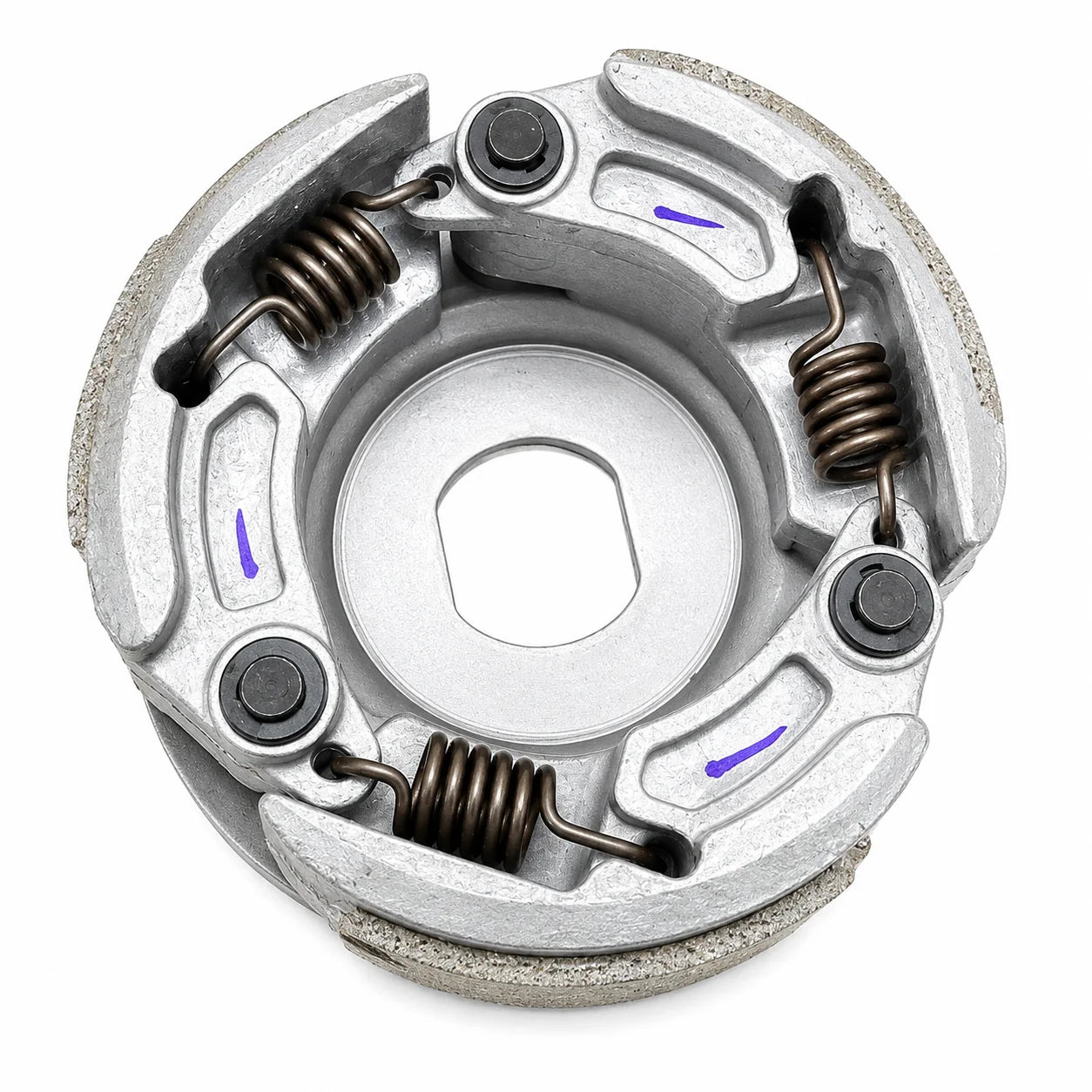

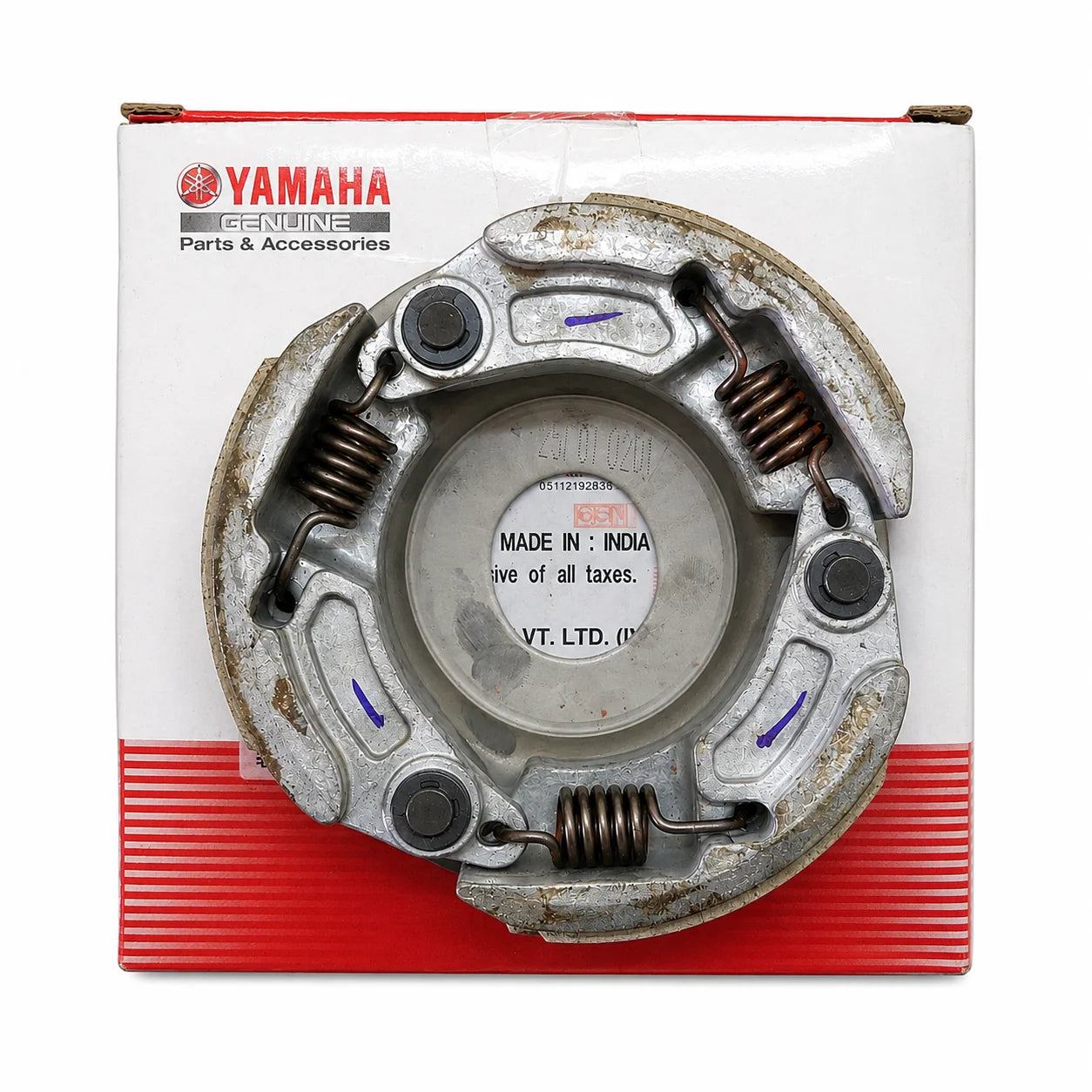

Ray ZR BS4 Clutch Assembly Yamaha Genuine Parts
The pack includes 1 set of clutch assembly.
Product Description
- Brand - Yamaha Genuine Parts
- Material - Aluminum Alloy, Non-Asbestos Friction Material
- Component - Clutch Carrier Assembly
- Transmission Type - CVT
About this product
The Clutch Shoe Assembly is a vital component of the CVT (Continuously Variable Transmission) system used in automatic scooters. It engages the clutch bell automatically as engine RPM increases, transmitting power from the engine to the rear wheel for smooth vehicle movement.
Main functions
It helps with:
- High-strength die-cast aluminum construction
- Durable non-asbestos friction lining
- Heat-resistant spring steel clutch springs
- Provides smooth clutch engagement
- Reduces vibration and clutch slippage
- Designed for long service life and reliable performance
Common signs of damage
A damaged or worn parts can cause:
- Poor pickup and acceleration
- Clutch slipping
- Excessive vibration during take-off
- Abnormal noise from CVT housing
- Reduced fuel efficiency
Parts In this Assembly
- Clutch Shoe - 3 numbers
- Friction Lining - 3 numbers
- Clutch Spring - 3 numbers
- Pivot Pin - 3 numbers
- Pivot Bush - 3 numbers
- Retaining Pin - 3 numbers
- Clutch Carrier or Spider - 1 number
- Center Hub - 1 number
Suitable For
- Ray ZR BS4
- Yamaha Ray ZR BS4

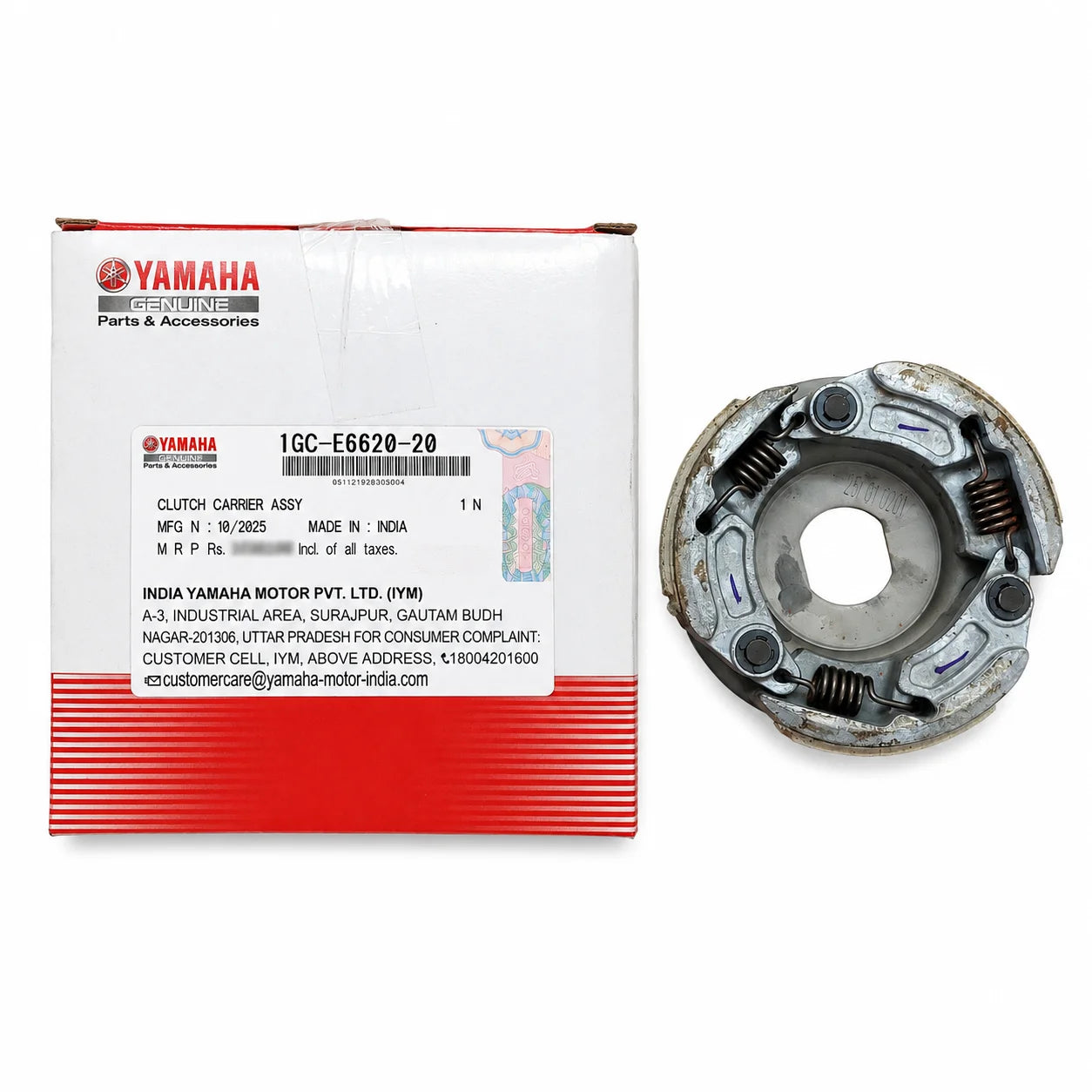

Part Number - 1GC-E6620-20
