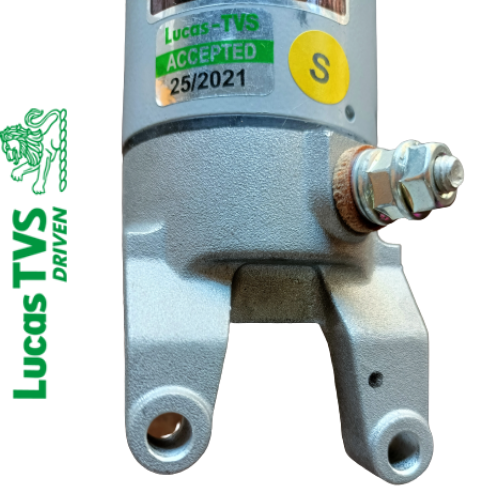

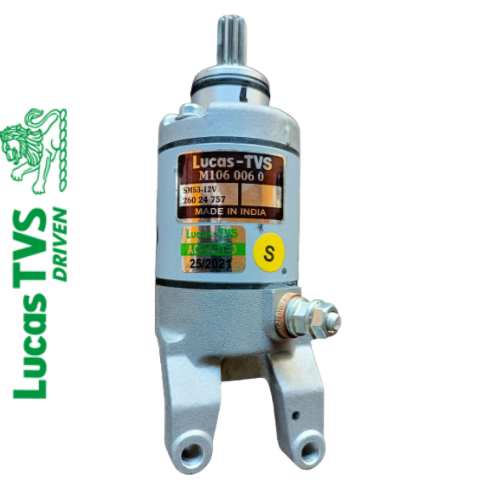

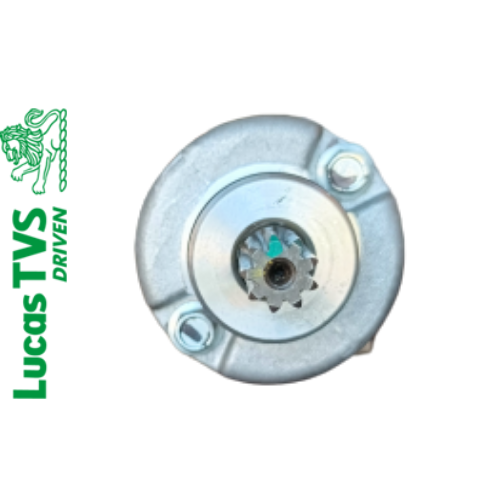

Name: Self Starter Motor TVS Apache 160/ Apache180 Lucas TVS (26024757)
Brand: 2Wheelerspares.IN
Price: 2239.00 INR
Availability: InStock

Self Starter Motor TVS Apache 160/ Apache180 Lucas TVS (26024757)

Rs. 2,239.00 INR Rs. 2,250.00 INR

Self Starter Motor TVS Apache 160/ Apache180 Lucas TVS (26024757)

Rs. 2,239.00 INR Rs. 2,250.00 INR

Pack consists of 1 self motor.

Suitable for TVS Apache 160/ Apache180

Parts Details

Part Number - 26024757

Product - STARTER MOTOR

Type - SM6

Voltage - 12V

Output Rating - 0.4Kw

Model - 2W MOTOR

Application - TVS Apache 160/ Apache180

Engine - 150cc & 180cc

From the manufacturer

Medium Capacity Vehicle

Applications

This Starter Motor is designed for two wheelers having engine capacity from 150CC to 400CC.

Starter Specification

Frame Size : 53 mm
System Voltage : 12 Volts
Polarity : Negative Earth
Nominal Output : 0.35 kW
Weight : 0.70kg(Approx.)

Direction of Rotation

Standard : Clockwise (Viewed from Pinion End)
Optional : Counter clockwise rotation On Request
Rated Time : 30 Seconds
Excitation type : Permanent Magnet Excitation
Number of Poles : 4
Temperature Range : – 5°C to 100°C

Typical Performance Curve

Guaranteed Performance

Performance Specification at Ambient Temperature 25°±5° C	CONDITION	VOLTAGE (Volts)	CURRENT (Amps)	TORQUE (N-m)	SPEED (RPM)
	No Load	(11.5)	26 (Max.)	—-	11,500 (Min.)
	Loaded	(10)	70	0.343 (Min.)	7,800 (Min.)
	Restrained	(5)	220 Max	1.35 (Min.)	—-
