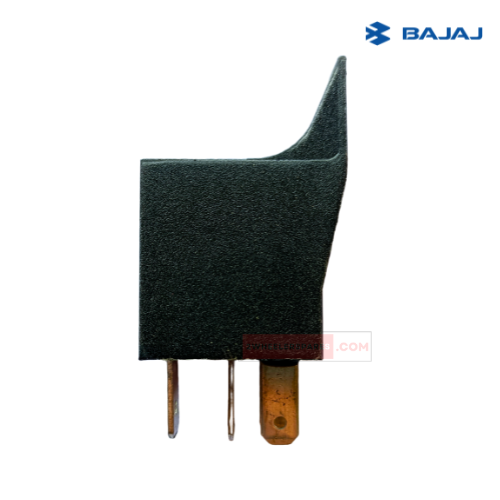

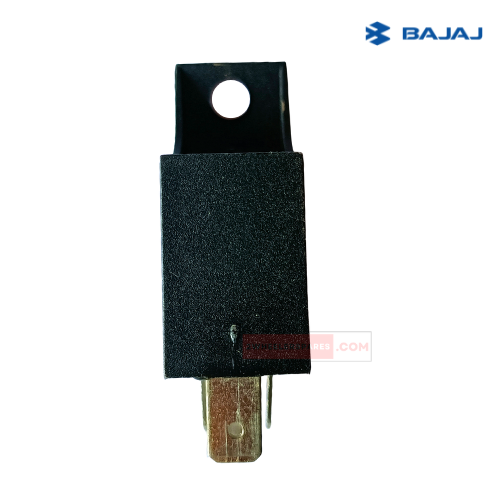

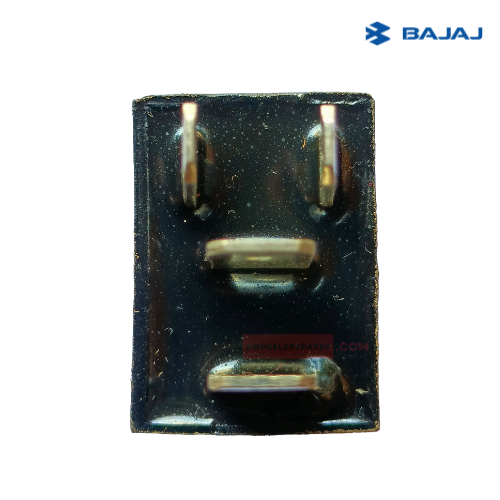

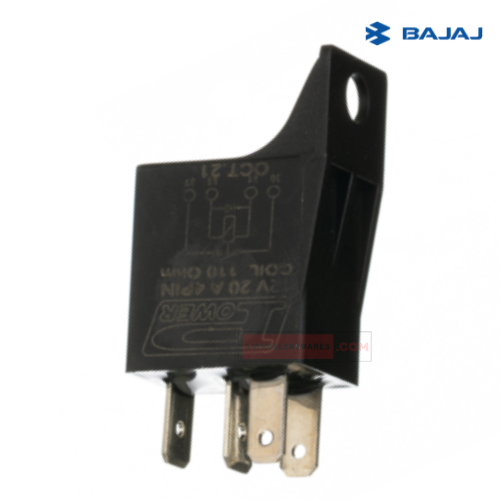

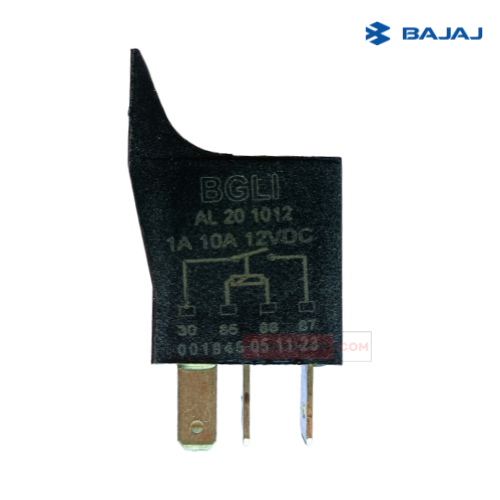

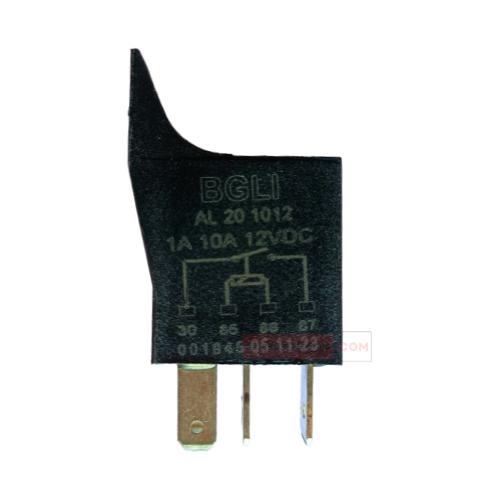

Bajaj Headlight Relay Micro Relay 4 Pin Bajaj Genuine Parts
Pack consists of 1 Relay with 4 Pins
Product Description
| Brand |
Bajaj Genuine Parts |
| Type |
Micro Relay |
| Battery Voltage |
12v |
| Operating Voltage |
12V |
| Number Of Pins |
4 |
Technical Specs
| Contact Form |
1A |
| Contact Material |
Ag Sn O2 |
| Coil Voltage(DC) |
12 V, 24V |
| Rated Switching Current |
30A/ 12VDC |
| Max Switching Voltage |
28VDC |
| Max Switching Current |
60A |
| Contact Voltage Drop |
200mV Max at 20A |
| Coil Power Consumption |
1.50W |
| Pull in Voltage Max |
8V |
| Max Drop Off Voltage |
1~4V |
| Dielectric Strength |
> 5 M? at 500VDC |
| Between Open Contacts |
500V AC/1min |
| Between Coil & Contacts |
1000V AC/ 1min |
| Insulation Resistance |
> 10 M? at 500VDC |
| Operating Temperature |
-30? TO + 85?C |
| Operate & Release time |
< 10ms |
| Endurance Test |
50,000 cycle of 5 sec ON & 30 sec OFF with a load current of 20A, 12VDC |
| Terminal Shape |
Plugin |
| Dimensions (mm) |
48.70 x 22.80?x 15.20 |
| Weight |
20 gram |
Usage & Utility
A relay is an electrically operated switch. Many relays use an electromagnet to operate a switch mechanically, but other operating principles, such as solid-state relays, are also used. Relays are used where it is necessary to control a circuit by a separate low-power signal, or where several circuits must be controlled by one signal.
| S.No |
Models |
| 1. |
Bajaj All Models |
| 2. |
Pulsar |
