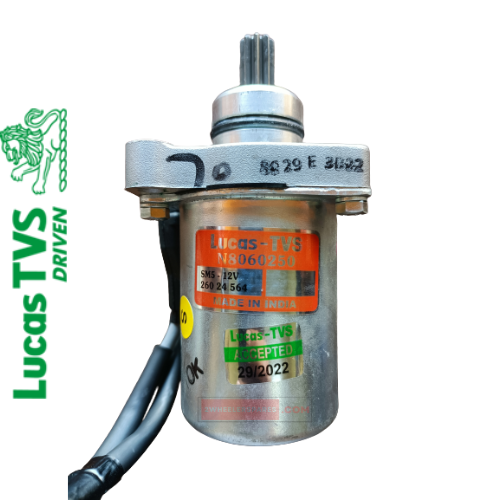

Self Starter Motor TVS Starcity Old Lucas TVS Genuine Self Starter Motor

Pack consists of 1 self motor.
Suitable for TVS Starcity Old

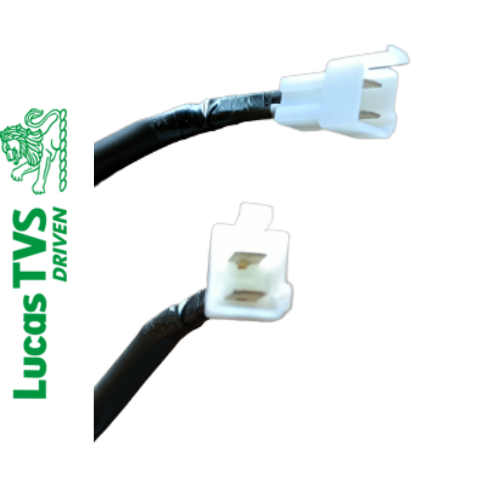

Number of connectors - 2 Pin Single Socket White Color
Part Number - 26024564

Parts Details

Part Number - 26024564
Product - STARTER MOTOR
Type - SM5
Voltage - 12V
Output Rating - 0.25Kw
Model - 2W MOTOR
Application - TVS Starcity Old
Engine - 4 STROKE 100CC

From the manufacturer

Lower Capacity Vehicle

Applications

  • This Starter Motor is designed for two wheelers having engine capacity from 100CC to 125CC.

Starter Specification

  • Frame Size : 50 mm
  • System Voltage : 12 Volts
  • Polarity : Negative Earth
  • Nominal Output : 0.3 kW
  • Weight : 0.77kg(Approx. with wiring harness.)

Direction of Rotation

  • Standard : Clockwise (Viewed from Pinion End)
  • Optional : Counter clockwise rotation On Request
  • Rated Time : 30 Seconds
  • Excitation type : Permanent Magnet Excitation
  • Number of Poles : 4
  • Temperature Range : 0°C to 100°C

Typical Performance Curve

Guaranteed Performance

Performance Specification at Ambient Temperature 25°±5° C CONDITION VOLTAGE

(Volts)

 CURRENT

(Amps)

 TORQUE

(N-m)

 SPEED

(RPM)
No Load (11.6) 14 (Max.) —- 13,000 (Min.)
Loaded 10.3 40 0.206 (Min.) 9,000 (Min.)
Restrained (5.7) 160 (Max.) 0.834 (Min.) —-
